Heavy Duty Steel Structure Workshop With Overhead Crane / Steel Frame Workshop Construction

Name: Heavy Duty Steel Structure Workshop With Overhead Crane Steel Frame Workshop Construction
Brand: Ruly Steel
Price: 29 USD

Buy cheap Heavy Duty Steel Structure Workshop With Overhead Crane / Steel Frame Workshop Construction product

Brand Name : Ruly Steel

Model Number : Ruly0029

Certification : SGS, ,ISO, BV

Place of Origin : China

MOQ : 500 Square Meter

Price : USD29-USD99 Per Square Meter

Payment Terms : L/C, T/T, Western Union

Supply Ability : 20000 Square Meter Per Month

Delivery Time : 30 Days

Packaging Details : As request

Application : Heavy Duty Steel Structure Workshop With Overhead Crane

Features : Steel Frame Workshop Construction

Type : Steel Structure Workshop

Raw steel material : Q235B, Q355B

Surface treatment : Painting or Hot-dip Galvanize

Service life : 50 Years

Wall and Roof : EPS sandwich panel

Columns and Beam : H Section Column&Beam

Contact Now

Heavy Duty Steel Structure Workshop With Overhead Crane / Steel Frame Workshop Construction

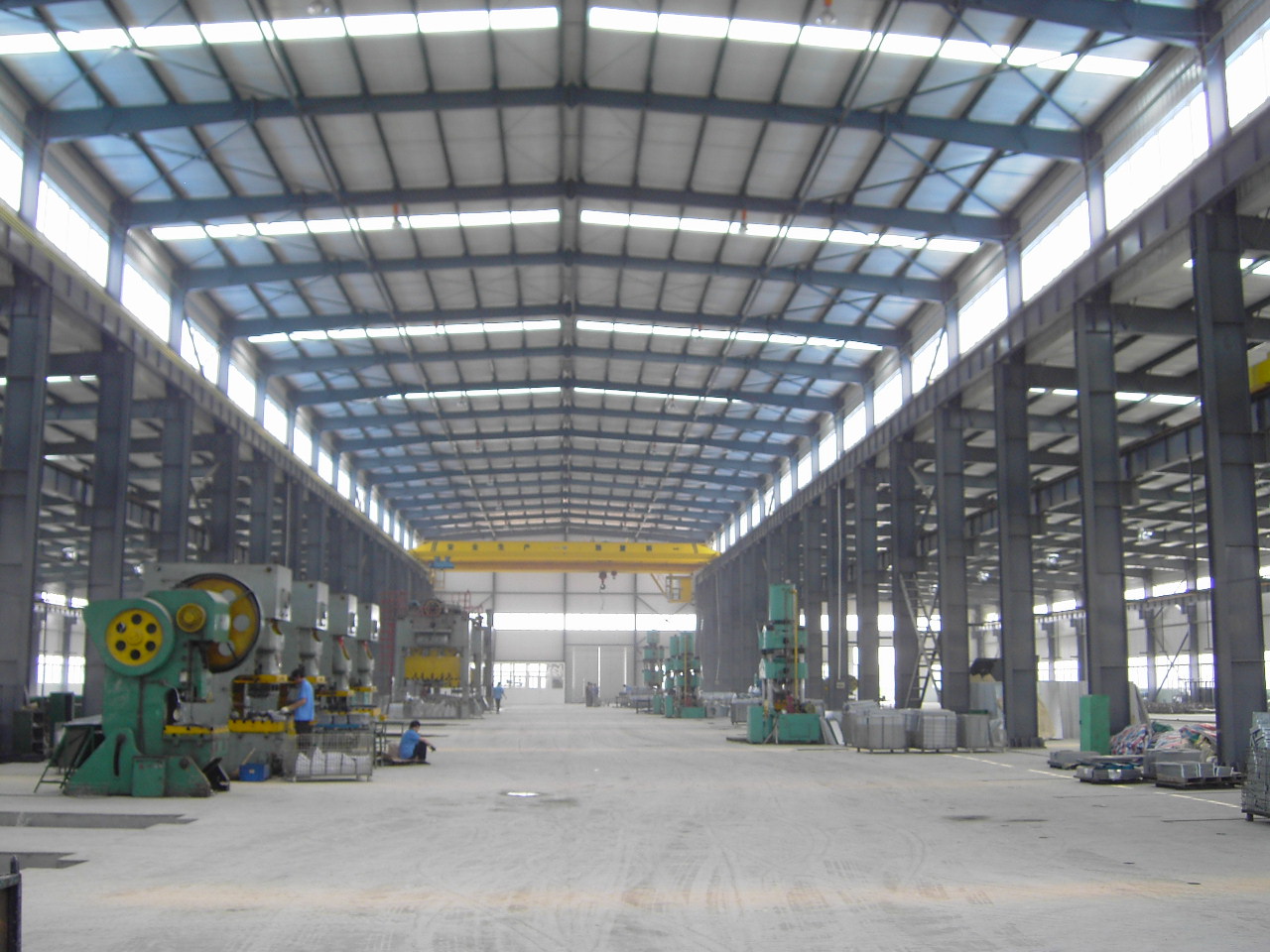

Heavy Duty Steel Structure Workshop With Overhead Crane / Steel Frame Workshop Construction. This steel structure workshop is used as a heavy engineering machine workshop. Large steel beams and columns is used to be the main steel structure frame. It has 6 of 20 Tons electric single girder cranes in the workshop to lift heavy machine and parts. Main steel structure quantity is about 950 Tons. Our service scope for this project include designing all the drawings, fabrication for steel structure, installation for steel structure, roof and wall panels, crane. We make the independent production schedule to each project. Our engineers will introduce and train workers for each project before fabrication works start.

Heavy Duty Steel Structure Workshop With Overhead Crane / Steel Frame Workshop Construction

Project Content & Scale:

New workshop with covered area of 13,500m².

Name	steel structure workshop with crane
Structure Type	3 spans, single ridge
Length	150m
Width	90m
Eave Height	11m
Roof Slope1	10%
Gable Wall Column Spacing	7.5m
Roof	75mm EPS sandwich panel
Wall	75mm EPS sandwich panel
Door	Sliding door
Window	Ribbon Skylight
Height difference between indoor and outdoor	300mm

Steel Structure Workshop Specification:

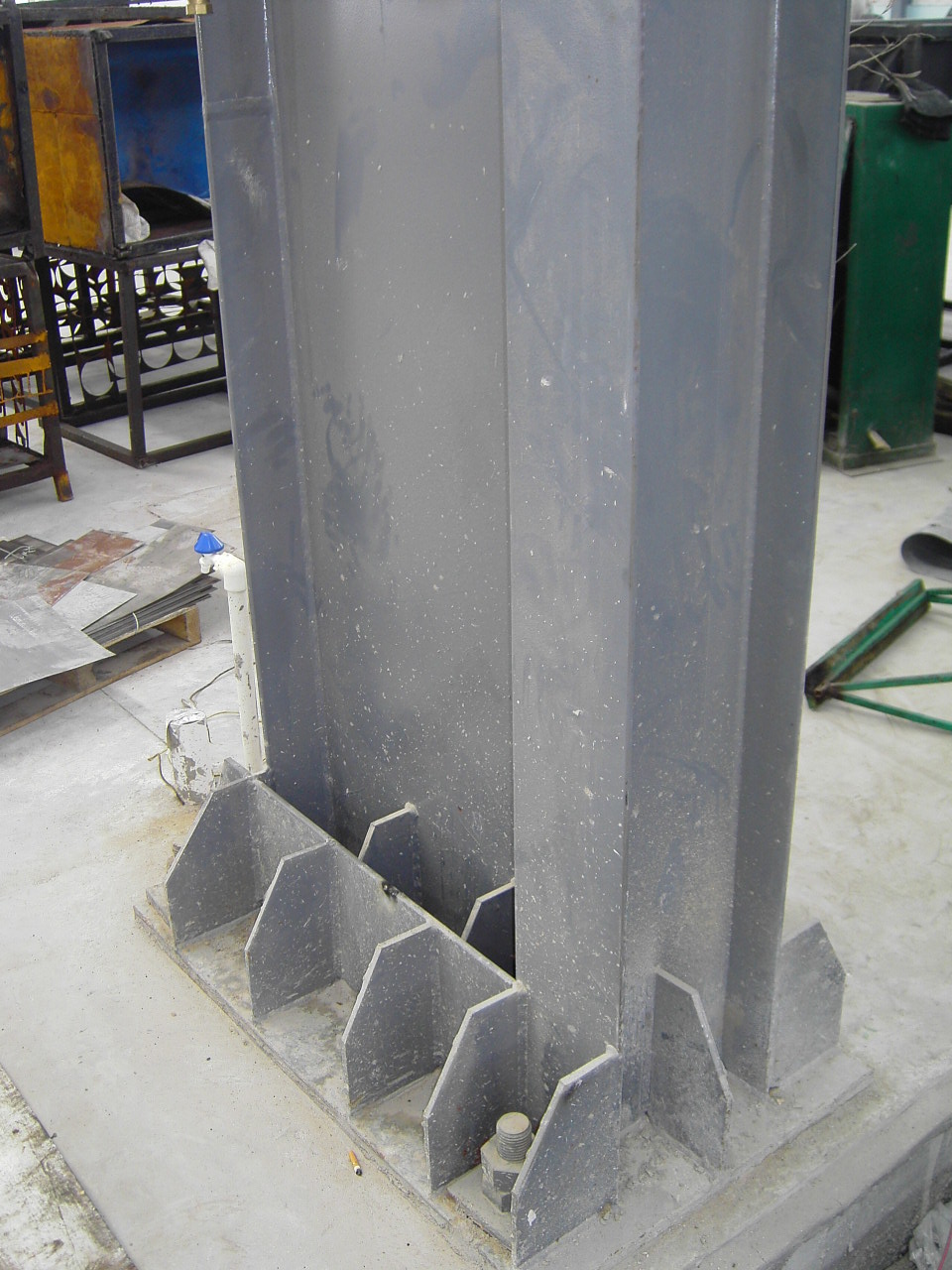

Main steel frame	H-section steel	Q345 steel 8mm to 10mm
	Welding	Automatic Submerged Arc Welding
	Rust removing	Sand blasting
	surface processing	Alkyd Paint or galvanized
	High strength bolt	Grade 10.9
Supporting system	Angle brace	L50x4,Steel Q235,Process and painting
	Cross bracing	dia.20 round bar,Steel Q235, process and painting
	Tie bar	dia.89*3 round pipe,Steel Q235 Process and painting
	Batter brace	dia.12 round bar,Steel Q235 process and painting
	Ordinary bolt	Galvanized bolt
Roof	Purlin	C160602.5,steel Q235,Painting or galvanized
	Out-roof panel	Sandwich panel or corrugated steel plate
	Transparent skylight	6mm thick PVC
	Accessories	Sealant,self-tapping screw, etc.
	Edge cover	Made of color steel sheet thickness 0.5mm
	Gutter	Made of steel sheet thickness 0.8mm, or PVC
	Rinspout	dia.110 PVC
Wall	Purlin	C160602.5,steel Q235,paint
	Wall panel	Sandwich panel or corrugated steel plate
	Accessories	Sealant,self-tapping screw etc
	Edge cover	Made of color steel sheet thickness 0.5mm
Ventilator		unpowered axial-flow ventilator or monitor roof
Door & window		Rolling door/sliding door, PVC/alu. alloy window
Crane		With or without crane, ranging from 5 tons to 20 tons

How to installation:

We will design installation drawing for each project, we could also install it as you need.

Heavy Duty Steel Structure Workshop With Overhead Crane / Steel Frame Workshop Construction

The following questions we need to know before making the price if you need us to design:

Just feel free to fill the form based on what you know.

1	Location (where will be built?)	_____country, area
2	Size: lengthwidthheight	_____mm_____mm_____mm
3	wind load (max. wind speed)	_____kn/m2, _____km/h, _____m/s
4	snow load (max. snow height)	_____kn/m2, _____mm
5	anti-earthquake	_____level
6	brickwall needed or not	If yes, 1.2m high or 1.5m high
7	thermal insulation	If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; . if not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former
8	door quantity & size	_____units, _____(width)mm*_____(height)mm
9	window quanity & size	_____units, _____(width)mm*_____(height)mm
10	crane needed or not	If yes, _____units, max. lifting weight____tons; max. lifting height _____m
