Steel Structure BuildingFabrication Prefab Steel Warehouse With QB355 Construction Steel Structure
Steel structure components are mainly composed of steel beams, steel columns, steel trusses and other components made of section steel and steel plates. Steel structure factory buildings, warehouses, office buildings, residences and other building components or components are usually connected by welding seams, bolts or rivets.
Steel structure building system has the advantage of light deadweight, factory production, fast installation, short construction period, good seismic performance, investment recovery faster, less environmental pollution and other comprehensive advantages, compared with a reinforced concrete structure, is more in the "high, big, light" three aspects of the development of unique advantages, globally, especially in developed countries and regions, the steel structure in the rational, widely used in the field of construction engineering.
Component materials
| Steel Frame | H section steel | Q235/Q345 steel plate thickness: 8-30mm |
| Welding | Automatic submerged arc welding |
| Rust removal | Sand blasting |
| Surface finish | Alkyd paint or galvanized |
| Intensive bolt | M20,Grade 10.9 |
| Supporting System | Angle brace | L50x4,Steel Q235, processed and painted |
| Horizontal brace | Φ20, Steel Q235, processed and painted |
| Column brance | Φ20, Steel Q235, processed and painted |
| Tie rod | Φ89*3, Steel Q235, processed and painted |
| Ordinary bolt | M12 Galvanized bolt |
| Roof | Purlin | C160*60*2.5,Steel Q235, galvanized and painted |
| Roof panel | Sandwich panel or corrugated steel sheet |
| Sky light | 6mm thick PVC |
| Accessories | Glass cement, self-tapping screws, etc. |
| Edge cover | 0.4mm steel sheet profile trimming |
| Gutter | 0.4mm thick sheet steel profile or galvanized sheet |
| Down pie | Φ110PVC |
| Walls | Purlin | C160*60*2.5,Steel Q235, painted |
| Wall | Sandwich panel or corrugated steel plate |
| Accessories | Glass cement, self-tapping screws, etc. |
| Edge cover | 0.4mm steel sheet profile trimming |
| Ventilation | Ventilation ball |
| Doors & windows | Rolling door/sliding door PVC/alu/steel/window |

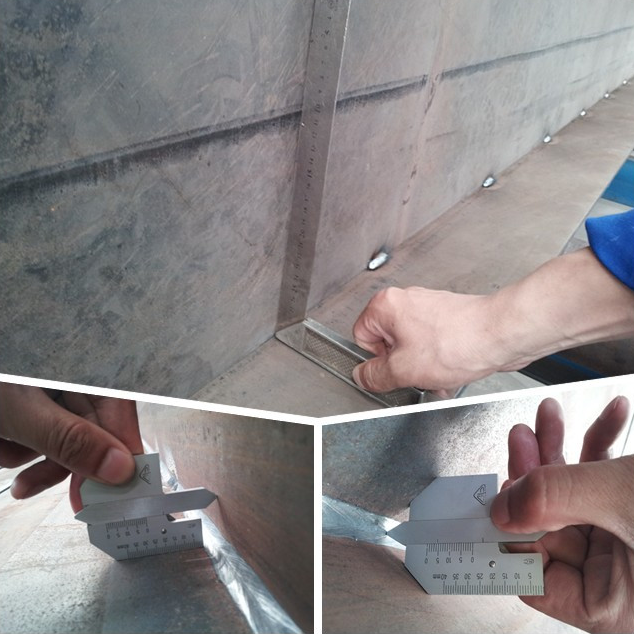

Product testing
Main Characters of steel structure
Prefabricated Storage Shed Construction Building Plan Design Low Cost Material Price for Sale Prefab Steel Warehouse Structure
· Super Aseismatic
Most part of the structure will be consisted of cold formed steel members, this system aseismatic grade can reachto 8.
· Wind Resistance
Steel structure building has the performance of high strength, solid rigidity and good deformation capacity, can resist strong wind for 50m/s.
·Durable
The steel material will be painted or galvanized as customers' requirement to be more anticorrosion and rustproof, the lifespan of the structure can be reach to 50~70 years.
·Heat Insulation
Sandwich panel can improve the insulation performance of the building, effectively avoid the phenomenon of "cold bridge" wall
·Environment Protection
Little waste for pollution in construction, 100% steel structure materials can be recycled, most of other related materials also can be recycled.
·Easy and Fast Build
Dry construction, will not influenced by the weather and environment, save much time and labor cost. One 300m2 steel structure building, can be finished in 30 days by only 5 workers.
Drawings & Quotation:
1) Customized design is welcomed.
2) We have an excellent design team. According to the requirements of different projects and clients,we will supply different designs and steel products.In order to give you an exactly quotation and drawings, please let us know the following informations. We will quote for you promptly.
