Prefabricated Steel Structure Logistics Park Steel Structure Building

  • 1
  • 2

Brand Name : Ruly Steel

Model Number : Ruly0341

Certification : SGS, BV, ISO

Place of Origin : China

MOQ : 300 Square Meter

Price : USD29-USD99 Per Square Meter

Payment Terms : L/C, T/T, Western Union

Supply Ability : 20000 Square Meter Per Month

Delivery Time : 30 Days

Packaging Details : Steel frame pallets and loaded into 40’HQ

Application : Prefabricated Steel Structure Logistics Park

Type : Steel Structure Warehouse

Raw steel material : Q235B, Q355B, ASTM A36

Service life : 50 Years

Wall and Roof : Rock wool

Surface treatment : Painting

Working scope : Design,Fabrication, Installation

Columns & Beams : H-section steel

Standard : AISC, ASTM, BS, DIN, GB, JIS

Contact Now



Prefabricated Steel Structure Logistics Park Steel Structure Building



With the development and growth of the logistics industry, steel structure warehouses are constantly updated. Many traditional warehouse functions are increasingly unable to meet the rapid development of the logistics industry. New automated steel structure warehouses are replacing traditional warehouses, and steel structures have become the main structure of logistics warehousing.

Steel structure logistics warehouse is an important part of the logistics industry, this kind of warehouse is a kind of warehouse with a high level of technology at present. Shelves, lane stackers, warehouse direct working platforms, automatic access and operation control systems are the main parts of the warehouse combination. The shelf is made of steel structure. The outstanding advantage is to realize the reasonable operation of the warehouse structure, maintain automation and simplify the operation. It uses computer or bar code technology in management.



Qingdao Ruly Steel Engineering Co.,Ltd is a professional steel structure fabrication and construction company for light and heavy steel structure  Design, Manufacture & Installation.

Specification of steel structure material:



Items Specification
Main Steel Frame Column Q235, Q345 Welded H Section Steel
Beam Q235, Q345 Welded H Section Steel
Secondary Frame Purlin Q235 C and Z purlin
Knee brace Q235 Angle Steel
Tie Rod Q235 Circular Steel Pipe
Brace Q235 Round Bar
Vertical and Horizontal Support Q235 Angle Steel, Round Bar or Steel Pipe
Maintenance system Roof Panel EPS Sandwich Panel / Glass Fiber Sandwich Panel /
Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet
Wall Panel Sandwich Panel / Corrugated Steel Sheet
Accessories Window Aluminiumn Alloy Window / PVC Window / Sandwich Panel Window
Door Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door
Rainspout PVC
Live load on Roof In 120kg/Sqm (Color steel panel surrounded)
Wind Resistance Grade 12 Grades
Earthquake-resistance 8 Grades
Structure Usage Up to 50 years
Temperature Suitable temperature.-50°C~+50°C
Certification CE, SGS, ISO9001:2008, ISO14001:2004
Finishing Options Vast array of colors and textures available
Paint Options Alkyd paiting, two primary painting, two finish painting
(gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized.

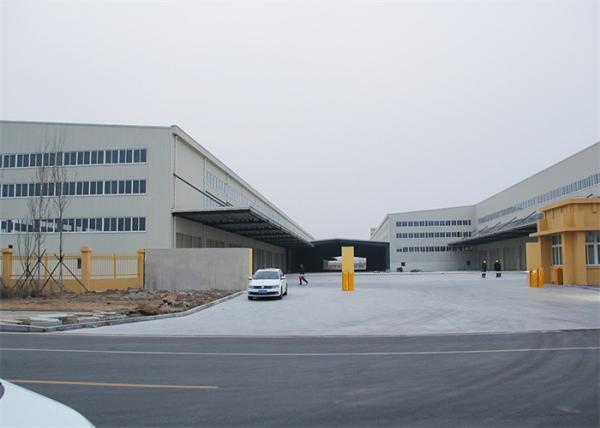

Prefabricated Steel Structure Logistics Park Steel Structure Building



Our steel structure fabrication factory:

The floor space of our steel structre fabrication factory is 35,000㎡, and the workshop area is 20000㎡. We own several light/heavy H steel production lines, BOX production lines, C/Z purlin production lines and various types of profiling steel sheet machines with advanced equipment such as plasma cutting machine.
Prefabricated Steel Structure Logistics Park Steel Structure Building

How to install:

We will provide construction drawing before installation for each project. We could also dispatch our engineer to guide installation on site or we install it by our construction team.

Prefabricated Steel Structure Logistics Park Steel Structure Building
